Sodium Hypochlorite
with HydroACT Multiparameter Analyzer
touchscreen hi-res Color Display
LIVE
titration
charting
Data logging and
export
multilingual
(english, spanish, etc.)

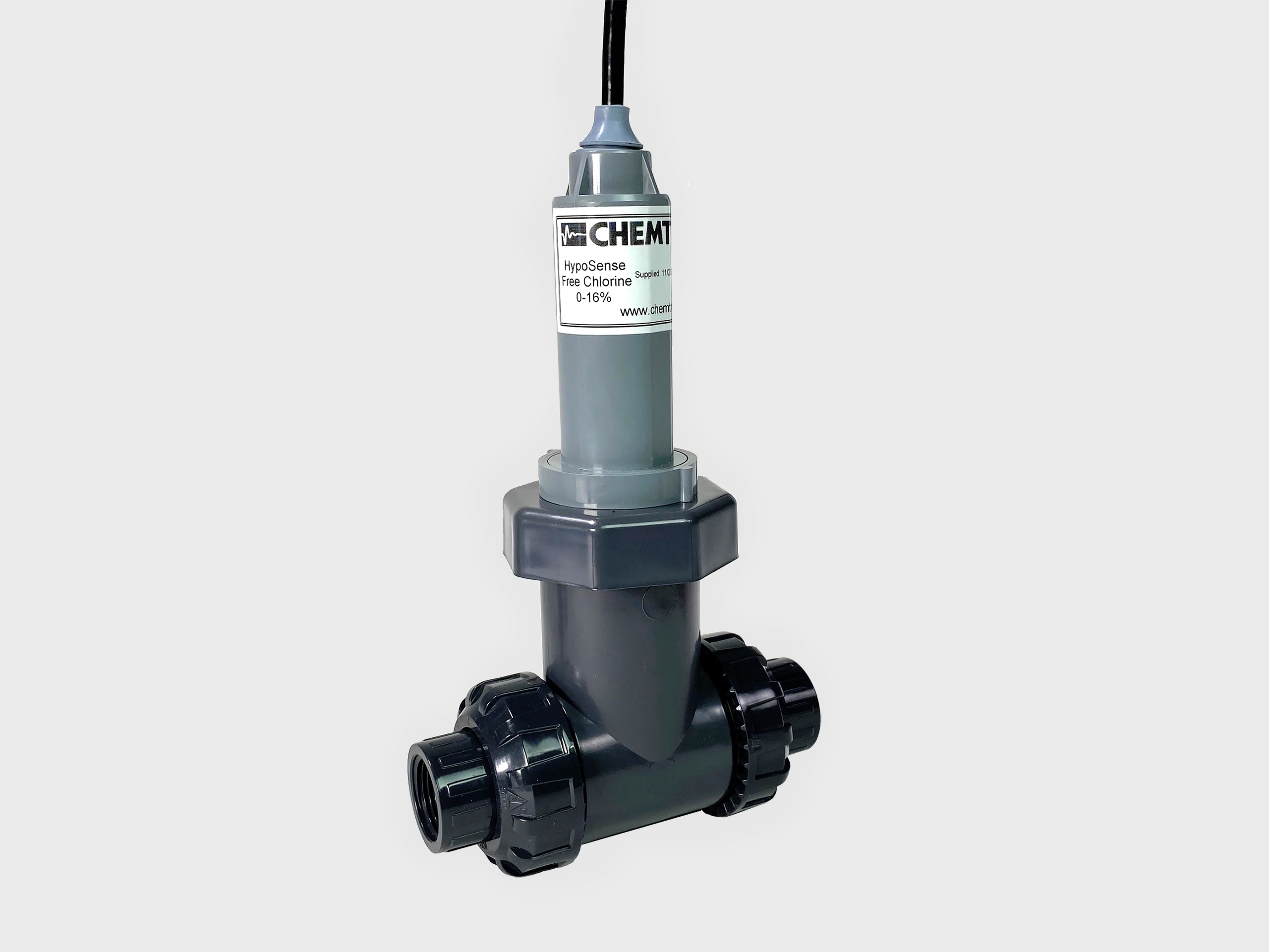

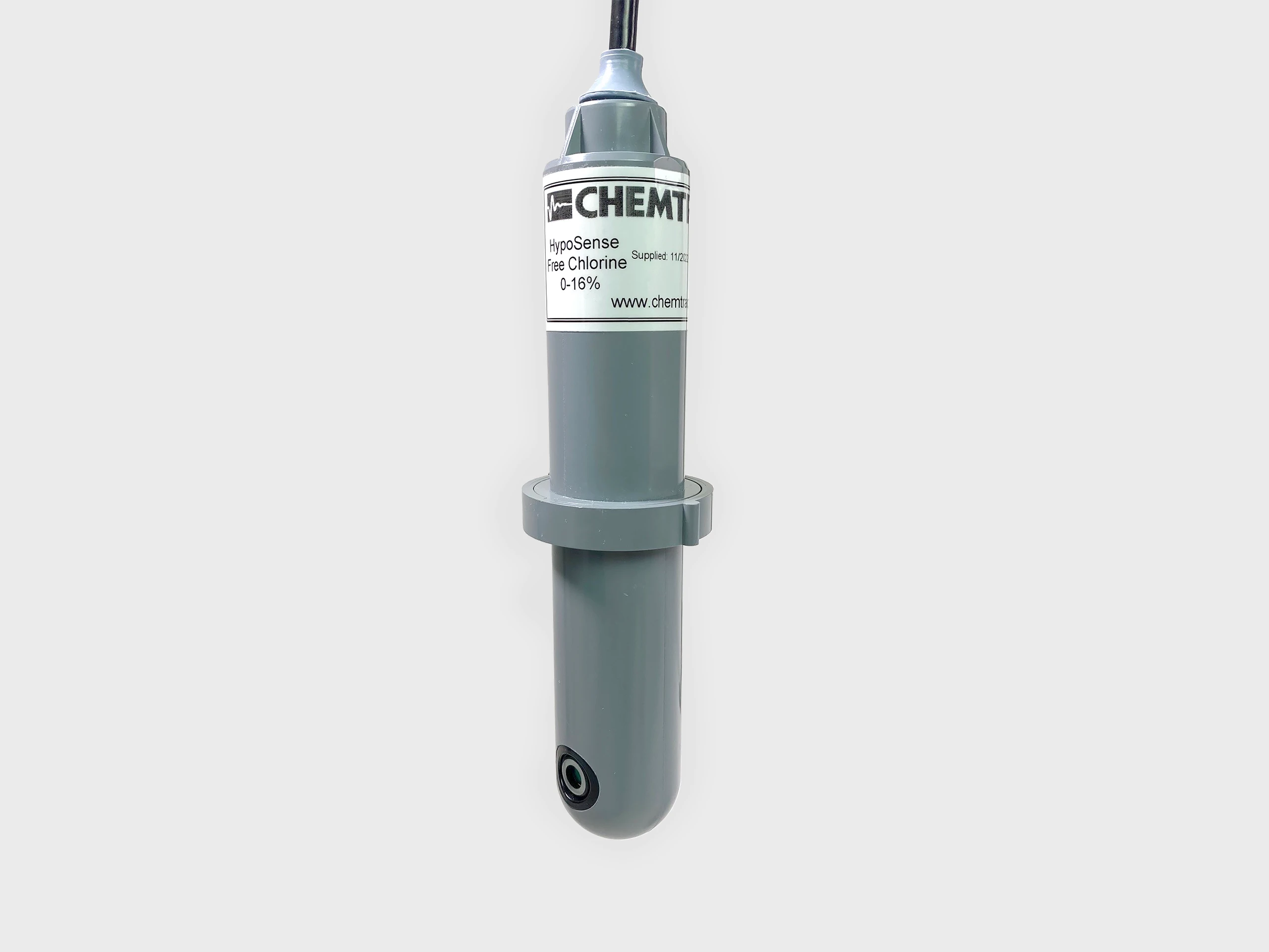

The Hypochlorite Sensor is used with the Chemtrac HydroACT analyzers for the measurement of chlorine in industrial bleach (sodium hypochlorite). This optical sensor, with a range of 0-16%, is specifically designed to withstand the harsh chemical environment associated with industrial bleach. The sensor is insensitive to changing pH, uses no reagents, is extremely stable, and has low maintenance
costs. A built-in temperature sensor allows for automatic temperature compensation.
Explore similar products
Overview
PRINCIPLE OF OPERATION
The optical sensor shines light of a specific wavelength (near UV) through the sample, and the amount of light that is absorbed is proportional to the concentration of chlorine in the sample. The sensor has a reference light source and detector for stability, and an built-in temperature sensor for integrated temperature compensation.
The bleach keeps the sensor clean, and bubbles are encouraged to flow through the sensor, and will not settle on the optical surfaces since the flow orientation through the T-fitting is vertical.
Calibration is done with comparison to titration kits, and is generally performed on a 3 or 6-month schedule. Calibration input is via a simple wizard on the controller display.
ANALYZER INTEGRATION
The Hypochlorite Sensor integrates with the HydroACT Series of analyzers using Modbus, which gives full communication with the sensor. Please see the reverse side of this product sheet for details pertaining to I/O, communications, control, and remote access capabilities of the different analyzers offered.
dashboard
sensor screen
chart view
diagram screen
Videos
-
Case History – Auburn WTP Utilizes Chemtrac Chlorine AnalyzersTestimonialA Water Treatment Plant in Auburn, AL has the need to monitor free chlorine onsite, as well as at remote locations in the distribution system, where they do…
-
Water Solutions Unlimited and Chemtrac Team-up to Provide Instrumentation SolutionsTestimonialChemtrac values having outstanding relationships with their sales reps, like Water Solutions Unlimited, to provide water treatment analyzer solutions to plants throughout the country…and around the world.
-
Chemtrac Chlorine AnalyzerDemonstrationThe Chemtrac Chlorine Analyzers take online disinfection monitoring to a new level of rleiability. They are accurate, pH independent, and offer a low cost of ownership with a…
-
HydroACT AnimationDemonstrationHydroACT is a versatile multi-parameter monitoring solution for water treatment processes. Key features include data logging, analog outputs, digital communications, and PID control. The systems are customizable and user friendly.
-
Chemtrac Chlorine Sensor Assembly and SetupTutorialProperly assembling the chlorine sensor is critical to the operation of the chlorine analyzer. This video demonstrates the appropriate way to set up the probe with the electrolyte,…
Q & A’s
Specifications
Hypochlorite Sensor Specifications
| Description | |
|---|---|
| Type | Optical, near UV absorption |
| Range | 0.1 - 16% |
| Accuracy | +/-2% of reading or +/-0.1% |
| Resolution | 0.01% |
| Stability | Approx. +/-1% per month |
| Flow Rate | No min or max |
| Temperature Range | 4 to 40°C (40 to 104°F) |
| Temperature Compensation | Automatically by an integrated thermistor |
| Storage Temperature | -7 to 60°C (20 to 140°F) |
| Installation | 3/4” Inline T |
| Calibration | Off line titration |
| Sensor Rating | IP67 |
| Maintenance Intervals | No maintenance |
| Materials of Construction | UPVC, Viton, Titanium and Quartz |
| Max Pressure | 100 psi (0.7 MPa) |
| Installation | 3/4” Inline T |
| Cable Length | 5 ft with IP67 connector. Includes additional 2 ft flying lead with IP67 (longer flying lead cables are available) |
| Dimensions | 6.8” L x 1.44” Dia (172.7 x 36.6 mm) |
| Weight | 0.37 lbs (170 g) |
HydroACT Specifications
| HA2 | HA4 | HA8 | |
|---|---|---|---|
| Sensor limit* | 2 | 4 | 8 |
| Analog output limit* | 2 | 4 | 8 |
| Relay limit* | 4 | 8 | 16 |
| Digital Input limit* | 4 | 8 | 16 |
| Isolated universal I/O | • | • | • |
| Nema 4X/IP65 | • | • | • |
| Wall & panel mount | • | • | • |
| Multilingual | • | • | • |
| High resolution display | • | • | • |
| Graphical trending | • | • | • |
| On/Off threshold control | optional | optional | optional |
| Advanced control (e.g. PID) | optional | optional | optional |
| Color display | • | • | |
| Customizable data logs | • | • | |
| MicroSD card download | • | • | |
| Remote (Internet) access | optional | optional | |
| PROFIBUS, Modbus | optional | optional | |
| *Sensors, I/O, and relays are all optional and must be specified at time of ordering | |||
